Spring Boot - Web framework

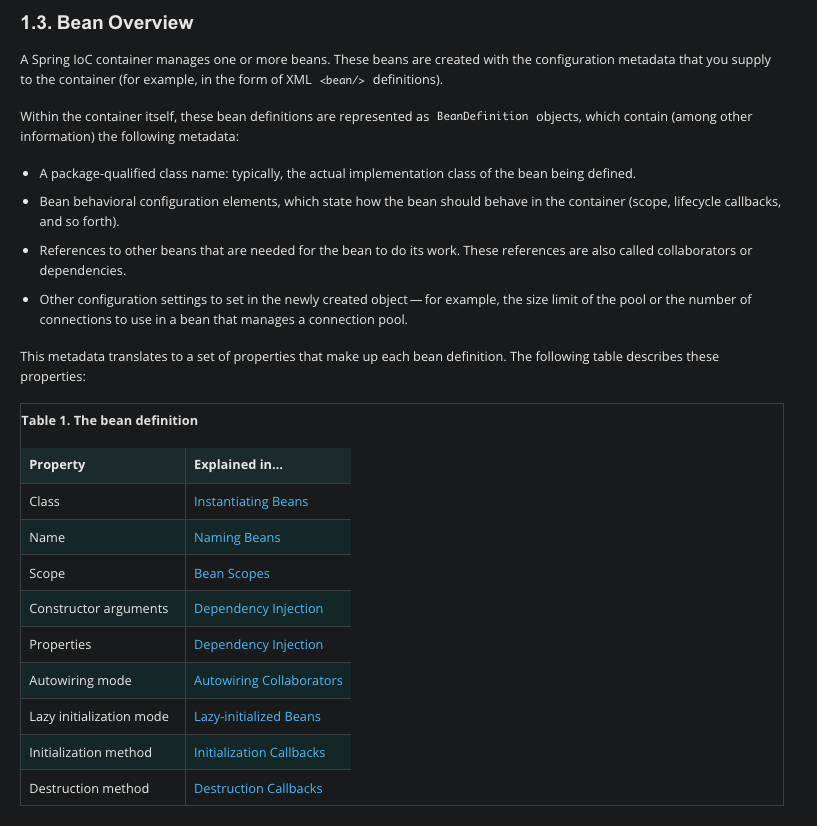

In Spring, the objects that form the backbone of your application and that are managed by the Spring IoC container are called beans. A bean is an object that is instantiated, assembled, and managed by a Spring IoC container (IoC means “Inversion of Control”) . Otherwise, a bean is simply one of many objects in your application. Beans, and the dependencies among them, are reflected in the configuration metadata used by a container.

Images and information were taken from the spring documentation website. For a more practical way to understand this please visit this link

Simply put, Inversion of Control (IoC) is a process in which an object defines its dependencies without creating them. This object delegates the job of constructing such dependencies to an IoC container.

Spring usa Algo que se llama aplication context para poder hacer la configuracion y la creacion de todo el seteo necesario para poder correr un proyecto de forma “automatizada” automatizada entre comillas porque pues tambien tienes que hacer uso de sus standares. En java un Bean no es mas que una clase que sigue un determinado standard, entre esos standares esta el usar variables privadas con sus respectivos getters and setters, un constructor vacio, etc. Pero tambien están los SpringBeans que siguen la misma que un Java Bean solo que necesita otras reglas o standards para poder considerarse SpringBean. De esa manera con el application context de Spring, Springboot sabe que beans existen y que dependencias tienen y así puede instanciar de manera automatica y tener un registro de las dependencias de la aplicacion de Spring. Obviamente esto es muy por encimita pero es lo que entendí hasta el momento. Pero en general para poder correr una aplicacion de SpringBoot se necesitan:

1. Un ApplicationContext
2. Un ApplicationConfig
3. Los componentes o beans que van a ser utilizados.

We can use a property file, look at this example, you will find a file called “properties” over resources folder. So we are loading the properties instantiating the Properties class and then passing over the SpringApplication instance.

We can also use an annotation called @PropertySource with an Environment object instance as you can see here. Here we need to use the @Autowired annotation under the Environment instance variable and @Configuration to automatically make an instance of the Environment class and pass the path of the file that contains the environment variables as you can see the in the following snippet.

 1: import org.springframework.beans.factory.annotation.Autowired;
 2: import org.springframework.context.annotation.Configuration;
 3: import org.springframework.context.annotation.PropertySource;
 4: import org.springframework.core.env.Environment;
 5:
 6: @Configuration
 7: @PropertySource("classpath:dbConfig.properties")
 8: public class DbConfiguration {
 9:
10:         @Autowired
11:         private Environment env;
12:
13:         @Override
14:         public String toString() {
15:                 return "User: "+env.getProperty("user") +", Password: "+env.getProperty("password");
16:         }
17:
18: }

Now obviously we need to have a dbConfig.properties file under resources folder located over the class path location. There we would have the environment variables defined as in UNIX are defined.

user=sa
password=p@sswOrd

then we will be able to get the configuration as the following snippet shows on line 9:

 1: @SpringBootApplication
 2: public class SpringBootAppDemoApplication {
 3:
 4:         private static final Logger log = LoggerFactory.getLogger(SpringBootAppDemoApplication.class);
 5:
 6:         public static void main(String[] args) {
 7:
 8:                 ConfigurableApplicationContext applicationContext = SpringApplication.run(SpringBootAppDemoApplication.class, args);
 9:                 DbConfiguration dbConfiguration = applicationContext.getBean(DbConfiguration.class);
10:                 log.info(dbConfiguration.toString());
11:         }
12: }
13:

Note: YAML files are not supported under this approach.

Spring Boot lets you specify the application configuration properties in the application.properties or application.yml file. This is the most widely used approach to provide a configuration in a Spring Boot application. By default, the Spring Initializr-generated Spring Boot project includes an empty application.properties file.

By default, Spring Boot reads the application.properties or application.yml file from the following locations:

1. The classpath root
2. The classpath /config package
3. The current directory
4. The /config subdirectory in the current directory
5. Immediate child directories of the /config sub directory

You can find the sample project here. To get the values of the environment variables you have to use an Environment instance as we saw an above snippet on line 11.

We can also refer to the operating system environment variables. Look at the below sample to know how to do it.

app.timeout=${APP_TIMEOUT}

The APP_TIMEOUT is an environment variable. In Linux you can define an environment variable as below line shows:

export APP_TIMEOUT=30

Then to get the values of the defined OS environment variables you can do the following:

 1: package com.manning.sbip.ch02;
 2: //imports
 3:
 4: @SpringBootApplication
 5: public class SpringBootAppDemoApplication {
 6:     private static final Logger log = LoggerFactory.getLogger(SpringBootAppDemoApplication.class);
 7:
 8:     public static void main(String[] args) {
 9:         ConfigurableApplicationContext applicationContext = SpringApplication.run(SpringBootAppDemoApplication.class, args);
10:         Environment env = applicationContext.getBean(Environment.class);
11:         log.info("Configured application timeout value: "+ env.getProperty("app.timeout"));
12:     }
13: }

There are two categories of spring boot properties or environment variables:

1. built-in properties
2. custom properties

Another way to define a custom property is through the @ConfiguratioProperties annotation. This technique is useful when we would like to have properties type validations. To know more details, please refer to section 2.2.1 of the book. You can see a sample of this technique looking at this sample project on GitHub provided by the author of the referenced book of this very brief resume.

Spring Data JPA provides two ways to define custom query methods that can meet most of these custom requirements:

• Defining custom methods in the repository interfaces with specific naming patterns. Spring Data can internally parse these methods and generate the query from it.
• Defining custom methods and providing an SQL query that is directly used by the Spring Data to query the entities.

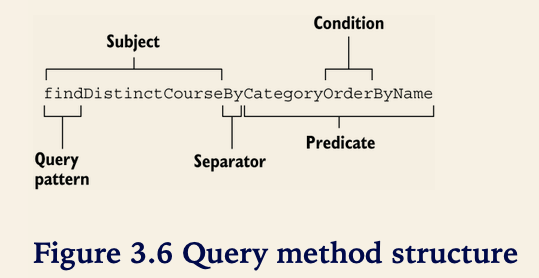

Spring Data uses the concept of a Subject and Predicate to parse the methods. It splits the method signature based on the By clause and treats the first half as the subject and the remaining part as the predicate. Thus, if you define a method named findDistinctCourseByCategoryOrderByName(), then the part DistinctCourse is the subject, and the CategoryOrderByName is the predicate. This is demonstrated in figure 3.6. Let’s use a technique to learn how you can define query methods to retrieve data from the database.

You can refer to this link to learn more about all the expressions or query methods you can use in the query method name.

If you want to see sample project please refer to this link.

In conclusion is better to use QueryDSL. These two different tools can be used as techniques to programmatically define queries in a type-safe manner. This because when using the @Query annotation we don’t have any type validation on queries, so if we have an error on any query definition the error will be throw on execution time, causing undesired results.

Which one should you use in your application? Well, both APIs are popular and widely used. Following are a few points to consider when deciding which API to use:

• The Criteria API is a native JPA library and, thus, has native support in JPA, whereas the QueryDSL is an open-source, third-party library.
• The Criteria API is criticized for its verbosity and complex nature of the API. You need to write more to even execute a simple query. The QueryDSL has a more approachable API due to the simpler and English-like API.
• Criteria API is only applicable for JPA. QueryDSL has integration with other data stores, such as MongoDB, Lucene, and JDO.

A sample project of the use QueryDSL can be found here: http://mng.bz/7Wn9.

In the relational database nomenclature, retrieving the required columns from different tables is known as projection. Spring Data lets you use projections either through interface-based projection or class-based projection. For more details please refer to the project.

CREATE TABLE authors (
  id   BIGINT NOT NULL,
  bio  VARCHAR(255),
  name VARCHAR(255),
  PRIMARY KEY (id)
);

CREATE TABLE authors_courses (
  author_id BIGINT NOT NULL,
  course_id BIGINT NOT NULL,
  PRIMARY KEY (author_id, course_id)
);

CREATE TABLE courses (
  id          BIGINT NOT NULL,
  category    VARCHAR(255),
  description VARCHAR(255),
  name        VARCHAR(255),
  rating      INTEGER NOT NULL,
  PRIMARY KEY (id)
);

ALTER TABLE authors_courses
  ADD CONSTRAINT course_id_fk FOREIGN KEY
 (course_id) REFERENCES courses (id);

ALTER TABLE authors_courses
  ADD CONSTRAINT author_id_fk FOREIGN KEY (author_id) REFERENCES authors (id);

INSERT INTO COURSES(ID, NAME, CATEGORY, RATING, DESCRIPTION)
 VALUES(1, 'Rapid Spring Boot Application Development',
 'Spring', 4, 'Spring Boot gives all the power of the
 Spring Framework without all of the complexity');
INSERT INTO COURSES(ID, NAME, CATEGORY, RATING, DESCRIPTION)
 VALUES(2, 'Getting Started with Spring Security DSL',
 'Spring', 5, 'Learn Spring Security DSL in easy steps');
INSERT INTO COURSES(ID, NAME, CATEGORY, RATING, DESCRIPTION)
 VALUES(3, 'Getting Started with Spring Cloud Kubernetes',
 'Python', 3, 'Master Spring Boot application deployment
 with Kubernetes');
INSERT INTO AUTHORS(ID, NAME, BIO)
 VALUES(1, 'John Doe',
 'Author of several Spring Boot courses');
INSERT INTO AUTHORS(ID, NAME, BIO)
 VALUES(2, 'Steve Muller', 'Author of several
 popular Spring and Python courses');
INSERT INTO AUTHORS_COURSES(AUTHOR_ID, COURSE_ID) VALUES(1, 1);
INSERT INTO AUTHORS_COURSES(AUTHOR_ID, COURSE_ID) VALUES(1, 2);
INSERT INTO AUTHORS_COURSES(AUTHOR_ID, COURSE_ID) VALUES(2, 1);
INSERT INTO AUTHORS_COURSES(AUTHOR_ID, COURSE_ID) VALUES(2, 2);
INSERT INTO AUTHORS_COURSES(AUTHOR_ID, COURSE_ID) VALUES(2, 3);
